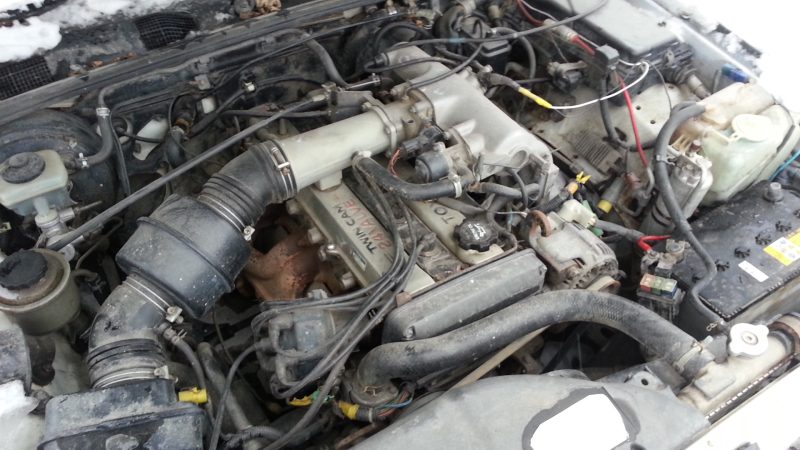

The 2.0-liter Toyota 1G-GE engine was produced at the company’s plants from 1988 to 1993 and was installed in a number of popular models of the concern, such as Mark II, Crown, Supra and Soarer. This unit replaced the 1G-GEU motor in 1988 and is in fact its updated version.
Technical characteristics of the Toyota 1G-GE 2.0 engine
| Characteristics | Value |
|---|---|
| Exact volume | 1988 cm³ |
| Power System | Injector |
| Engine power | 140 – 150 hp |
| Torque | 165 – 180 Nm |
| Cylinder block | Cast iron R6 |
| Cylinder head | Aluminum 24-valve |
| Cylinder diameter | 75 mm |
| Piston stroke | 75 mm |
| Compression ratio | 9.5 |
| Engine Features | DOHC |
| Hydrocompensators | No |
| Transmission timing | Belt drive |
| Fasoregulator | No |
| Turbocharger | None |
| Recommended oil | 5W-30, volume 4.2 liters |
| Fuel type | AI-92 |
| Ecological class | Euro 2 |
| Example service life | 400,000 km |
| Engine weight | 190 kg |
Cars with Toyota 1G-GE engine
The 1G-GE engine was installed in several Toyota models, including popular models of Mark II and Soarer series.
| Model | Body | Years of production |
|---|---|---|
| Toyota Chaser | X80 | 1988 – 1992 |
| Toyota Cresta | X80 | 1988 – 1992 |
| Toyota Crown | S130 | 1988 – 1991 |
| Toyota Mark II | X80 | 1988 – 1992 |
| Toyota Soarer | Z20 | 1988 – 1991 |
| Toyota Supra | A70 | 1988 – 1993 |
Main faults, breakdowns and problems of the 1G-GE engine
The 1G-GE engine is one of the most reliable among Toyota motors of its time. However, it can have some problems at high mileage:
- Reliability and life
The engine is known for its durability and with regular maintenance, it can go 400,000 kilometers or more without any problems. - Oil consumption at high mileages.
At high mileages, you may experience increased oil consumption due to piston ring seizure. This can be corrected by replacement or repair. - Swimming RPMs
The main cause of erratic idle speeds is a dirty throttle plate or malfunctioning idle speed regulator (idle control valve). - Oil pressure sensor
Some owners complain of oil pressure sensor failures or oil leaking from under the sensor, which may require replacing the gasket. - Lack of hydrocompensators
The engine is not equipped with hydrocompensators, so it is important to check valve clearances regularly, every 20,000 km.
The Toyota 1G-GE is a reliable and unpretentious engine that, when properly maintained, provides long life and excellent performance.
