Ford Focus 3 1.6 125 hp engine specifications
| Manufacturing | Bridgend Engine Plant |
| Years of production | 2010 – present day |
| Engine type | Row, gasoline |
| Number of cylinders | 4 |
| Valves per cylinder | 4 (16 in total) |
| Cylinder block material | Aluminum |
| Power system | Injector |
| Piston stroke | 81.4 mm |
| Cylinder diameter | 79 mm |
| Compression ratio | 11.0 |
| Engine displacement | 1596 cm³ |
| Power | 125 hp at 6300 rpm |
| Torque | 159 Nm at 4100 rpm |
| Fuel type | AI-95 |
| Environmental class | Euro 5 |
| Fuel consumption | City – 8.0 l / Highway – 4.7 l / Mixed – 5.9 l/100 km |
| Oil consumption | About 200 g / 1000 km |
| Dry weight of the engine | ~90 kg |
| Motor dimensions (LxWxH) | Specified |
| Recommended oil | 5W-20, 5W-30 |
| Reserve according to the factory data | 250,000 km |
| Life in practice | 300,000 – 350,000 km |
| Tuning potential | Unknown |
| No loss of life | Unknown |
| Application |
|
Ford Focus 3 Ti-VCT 125 hp engine problems and repairs

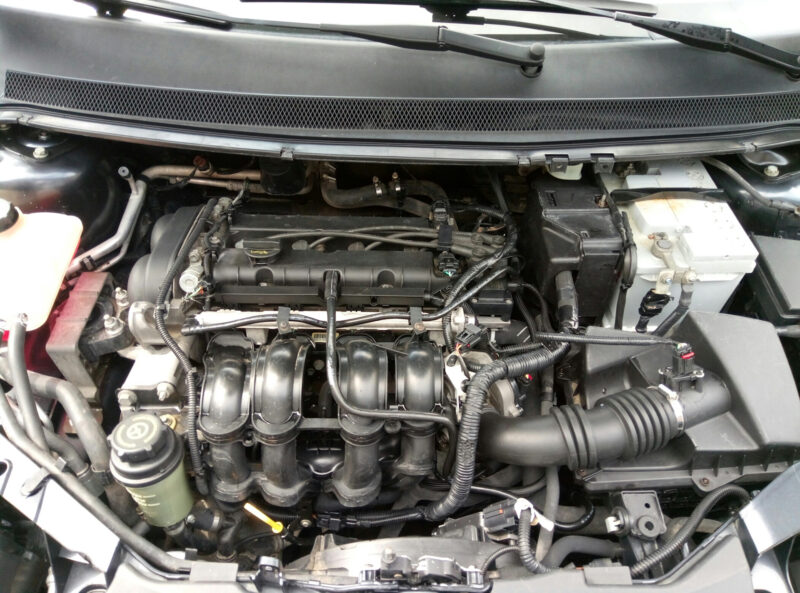

Ford Focus Duratec Ti-VCT 1,6 liter engine. 125 hp is the same Duratec Ti-VCT 1,6 105 hp with a variable valve timing system, but with other camshafts, modified timing, other exhaust, earlier cutoff, hence we have a power gain of 20 hp. Engine resource of Ford Focus 1.6 125 hp according to the factory is 250 thousand kilometers. Knowing that the motor is an old 115-horsepower from Focus II, we can assume a real motor resource of 300-350 thousand kilometers.
The motor timing drive is belt drive, it is obligatory to replace rollers and belt once in 160 thousand kilometers. As well as all past models of 1,6 liter engine, is as reliable, without obvious weak points, but according to owners, it drives worse than the old 1,6 115 hp. Otherwise, the joints and shortcomings are the same as on the previous Zetecs.
As in all Ford Duratec up to 1,6L (inclusive), the timing drive is belt drive, and rollers and belt replacement is obligatory once in 160 thousand kilometers. The minuses include inelasticity of the motor, lack of power, at full load the car is quite dead. Forcing the car to go, owners twist the engine as far as possible, reducing the economy to zero, as well as significantly reducing the resource.
At careful operation, as well as 1,6-liter brethren, the motor is reliable and rather economical, normal city variant for driving alone.
These motors are quite reliable, but occasionally the thermostat jams and fails and then your engine Ford Focus 2 warms up or vice versa does not warm up to operating temperature, replace the thermostat.
From time to time dies the right cushion of the engine ford focus and starts vibration of the motor, change the cushion and everything is normalized. In addition, rarely, but still there are situations when the engine Ford Focus troit … the reasons may be a number of: candles, high voltage wires, throttle valve clogged, idle regulator (if at idle troit), ignition coil, gasoline pump … easier and cheaper to go to the service for diagnosis.
For Ford Fiesta Mk VI this motor is produced in a de-forced version, rated at 120 hp.
MOTOR RATING: 4
