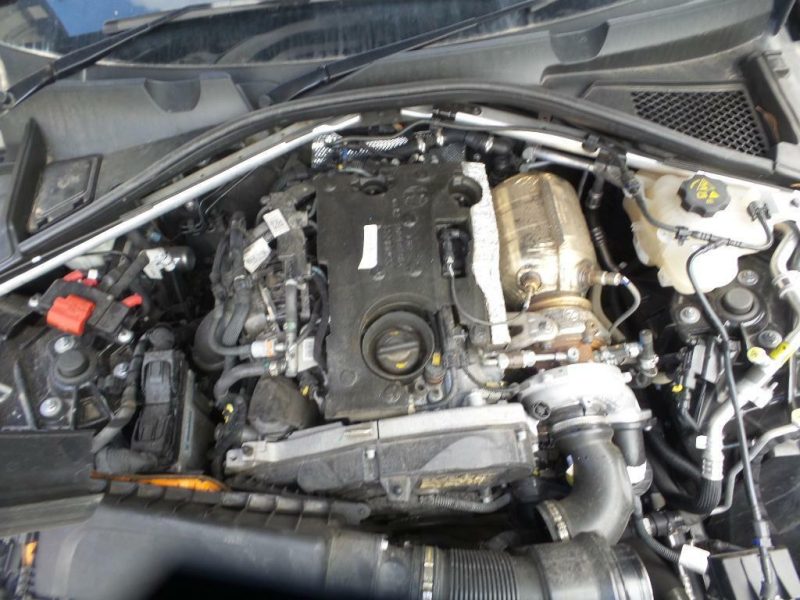

The 2.2 liter Alfa Romeo JTDM diesel engine, also known as Multijet II, has been produced by CNH Industrial since 2015. It has been developed for models such as the Alfa Romeo Giulia and Stelvio, and was recently installed in the Jeep Wrangler. This engine is available in a variety of power and design features, including a cast iron block version for Fiat Ducato vans.
Alfa Romeo JTDM 2.2 Multijet II engine specifications
| Parameter | Characteristics |
|---|---|
| Exact volume | 2143 cm³ |
| Power system | Common Rail |
| Engine power | 136 – 210 hp |
| Torque | 380 – 470 Nm |
| Cylinder block | Aluminum, in-line 4-cylinder (R4) |
| Cylinder head | Aluminum, 16 valves |
| Cylinder diameter | 83 mm |
| Piston stroke | 99 mm |
| Compression ratio | 15.5 |
| Engine Features | DOHC |
| Hydrocompensators | Yes |
| Transmission timing | Belt drive |
| Fasoregulator | No |
| Turbocharger | Garrett GTD1752VRK |
| Oil type | 4.0 liter 0W-20 |
| Fuel | Diesel |
| Environmental class | Euro 6d |
| Reserve | Approximately 300,000 km |
| Engine weight | 158 kg |
Models on which the JTDM 2.2 liter engine is installed
- Alfa Romeo Giulia II (Type 952) (2015 – present)
- Alfa Romeo Stelvio I (Type 949) (2016-present)
- Jeep Wrangler (recent installation)
- Fiat Ducato (cast iron block version)
Disadvantages, breakdowns and problems of the JTDM 2.2 engine
- Air filter contamination: In the early years of production, the engines suffered from oil vapor contamination in the filter. This problem was resolved in 2017 with the modernization of the crankcase ventilation system.
- Antifreeze leaks: Some models suffered from antifreeze leaks through the thermostat and its tubes.
- G timing belt: It is important to keep an eye on the condition of the timing belt, as it can cause valve bending if it breaks.
- Intake and EGR clogging: As with all modern diesels, problems can occur with clogging of the intake system, exhaust gas recirculation (EGR) and particulate filter.
- Oil pump malfunction: There are many recommendations online to improve this unit, as oil pump problems have also been reported by owners.
This engine is reliable, but requires regular maintenance, especially in terms of replacing consumables and monitoring the condition of the timing system and crankcase ventilation.
